Box Compression Tester
How much force can a box withstand before it deforms or collapses.
About Us

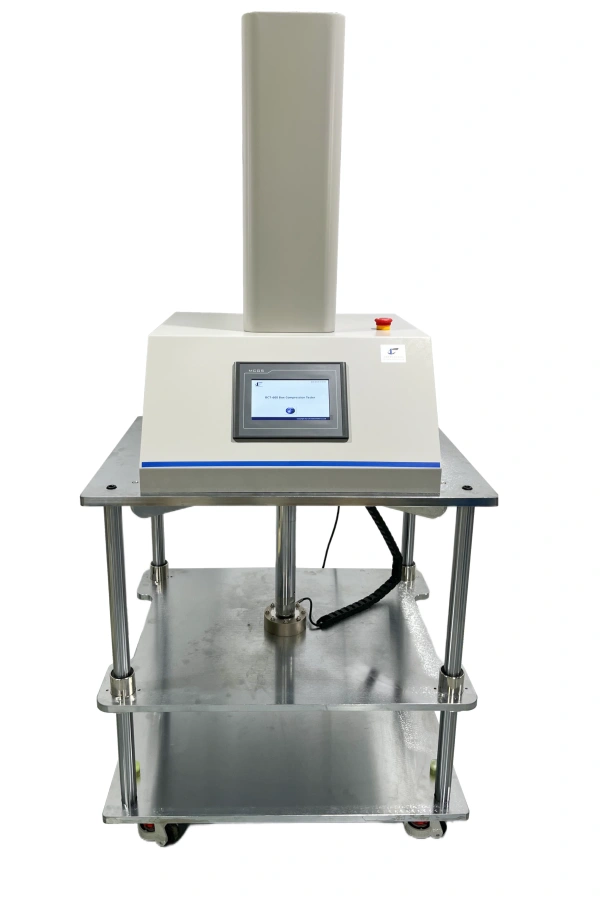

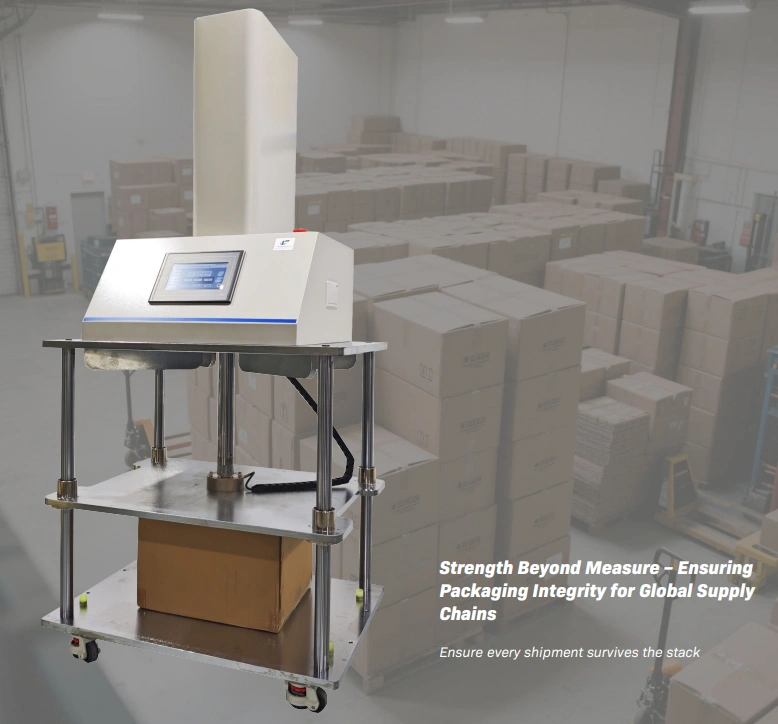

Box Compression Tester
Compressive strength is the ability of a material to resist forces that reduce its size. For finished packages, a compression test evaluates their resistance to crushing, degree of deformation, and stacking strength.
static load
Key Features
- High Precision Load Cell – Accurate measurement of compression strength up to ±0.5% FS.
- Customizable Test Range – Available in capacities from 5kN to 50kN to meet various packaging requirements.
- Multiple Test Modes – Peak load test, stacking test, and constant load test for different applications.
- Touchscreen Control Panel – User-friendly interface with digital display of force, displacement, and time
- Data Recording & Export – Built-in printer or USB interface for easy result storage and reporting.
- Safety Protection – Overload and emergency stop functions to protect operator and equipment.
Box Compression Testing Standard
ASTM D642、ASTM D4169、TAPPI T804、ISO 12048、JIS Z0212、GB/T 16491、GB/T 4857.4、QB/T 1048-2004
We can assist you in selecting or customizing the ideal unit to meet your specific testing requirements.
Box Compression Testing Applications
| Strength Test (Crush Test) | The strength test, often called the crush test, applies a steadily increasing load until the box deforms or fails. This test identifies the maximum force (peak load) the box can withstand. |
| Fixed-Value Test | The fixed-value test maintains a set pressure or deformation threshold to evaluate box stability. |
| Stacking Simulation Test | This test replicates warehouse stacking conditions, applying a sustained load over a set period. |
| Packaging | Corrugated boxes for food, e-commerce, and retail packaging. |
| Pharmaceutical & Medical | Plastic containers and drums designed for sensitive materials. |
| Chemical & Adhesives | Fiberboard and plastic barrels for secure chemical storage. |
| Heavy Machinery & Automotive | Wooden crates and composite packaging solutions for heavy equipment. |
| Quality Control & R&D | Optimize packaging design and material selection for enhanced performance and cost efficiency. |
Technical Specifications
| Test Space (mm, LWH) | 600600600 (customizable) |
| Test Range | 0.25KN, 0.5KN, 1KN, 2KN, 5KN, 10KN, etc |
| Resolution | 0.01N |
| Deformation error | ≤1mm |
| Plate parallelism | ≤1mm |
| Loadcell Error | ±1% |
| Return Speed | 100mm/min |
| Compression Speed | 10±3mm/min |
| Stacking Speed | 5±1mm/min |
| Units | N/Lbf /kgf |
| Analysis | 7 – inch touchscreen with curve analysis and integrated micro – printer, Optional RS232 and software |
| Power | AC 110 – 220V 50/60 Hz |
The Importance of Box Compression Testing
Ensuring Packaging Integrity and Product Safety
Box Compression Testing evaluates the maximum load a carton or box can withstand without deformation or failure. This ensures that packaging maintains its structural integrity during stacking, transportation, and storage, effectively protecting the products inside from damage.
Optimizing Packaging Design and Cost Efficiency
By understanding the compression strength, manufacturers can optimize material selection and box construction. This helps achieve the right balance between strength and material usage, reducing unnecessary costs while maintaining adequate protection.
Compliance with Industry Standards and Customer Requirements
Box Compression Testing ensures packaging meets relevant international standards such as ISO 12048 and ASTM D642. Compliance with these standards helps manufacturers fulfill customer expectations, regulatory requirements, and facilitates smoother logistics and supply chain operations.
Cell Instruments Advantages
Professional manufacturer background
With many years of R&D and production experience, we focus on packaging, medicine, food, and electronics. We have a strong R&D team and modern manufacturing system to ensure leading product quality and technical level.
Strong custom development capabilities
With deep technical accumulation, we provide tailor-made solutions, including function adjustment, software customization, and automation transformation, to flexibly respond to various testing needs and improve testing efficiency.
Complete after-sales service system
With a technical support and after-sales service network covering the national and overseas markets, we provide full-service services such as operation training and remote diagnosis to ensure that customers are worry-free and minimize downtime.
